OCS Surface Quality Analyser (SQA100)

Surface Quality Analyser (SQA100)

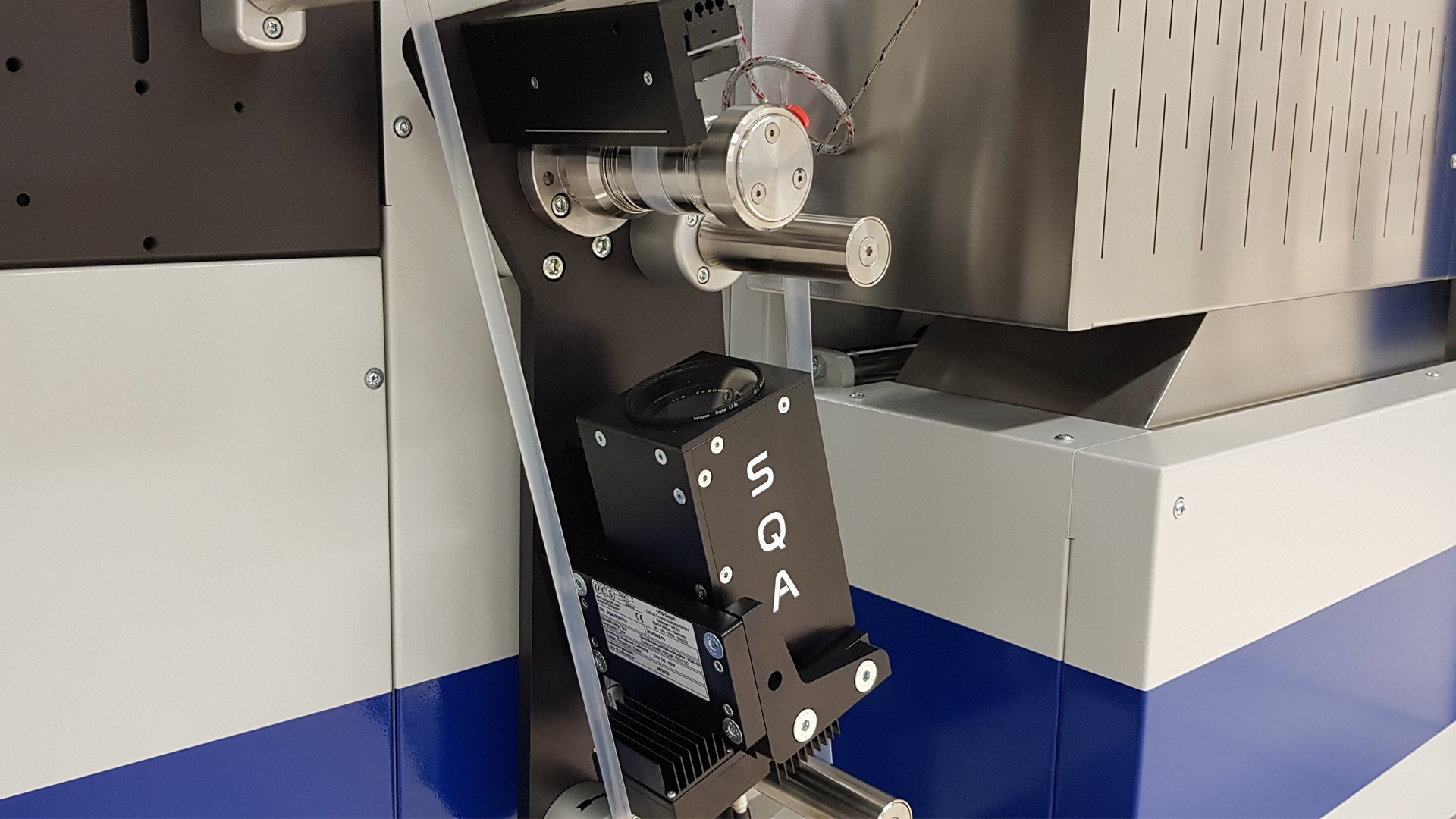

The OCS Surface Quality Analyser (SQA100) is specially designed to detect irregularities on the surface (pips) of polymer films (tape) in the wire and cable industry. The high-resolution CMOS camera system measures the height of the pips with a resolution of 1 µm using a special measuring method. Additionally, the base diameter and the diameter at half the height of the pips are measured with a resolution of 10 µm. The SQA100 software allows the user to define height and diameter classes and classify the measured pips accordingly. All relevant measurement results are clearly displayed and can be exported to all common file formats.

Testable Materials

  • Non-transparent polymer films (tape)

Features

  • High-resolution CMOS camera system
  • LED lighting
  • Real-time error analysis with customer-specific presentation of results

Compatible with

  • OCS Tape Line (SSA)

Sales Team

T +49 2302 95622-0
F +49 2302 95622-33
info@ocsgmbh.com
www.ocsgmbh.com

Address

OCS Optical Control Systems GmbH
Wullener Feld 24
58454 Witten
Germany

Technical Details

Camera
CMOS camera
Resolution
1 μm for measuring the height of the pips
10 μm resolution for measuring the base diameter and the diameter at half height
Lighting
LED
Communication protocol
MODBUS (RTU, TCP/IP), PROFIBUS, PROFINET, OPC (Server/Client), CSV file, customer-specific
X

Optional

  • Customer-specific data preparation and transfer
  • Remote control (via communication protocol or digital I/O)
