OCS Gloss Measurement (OGM)

Gloss Measurement (OGM)

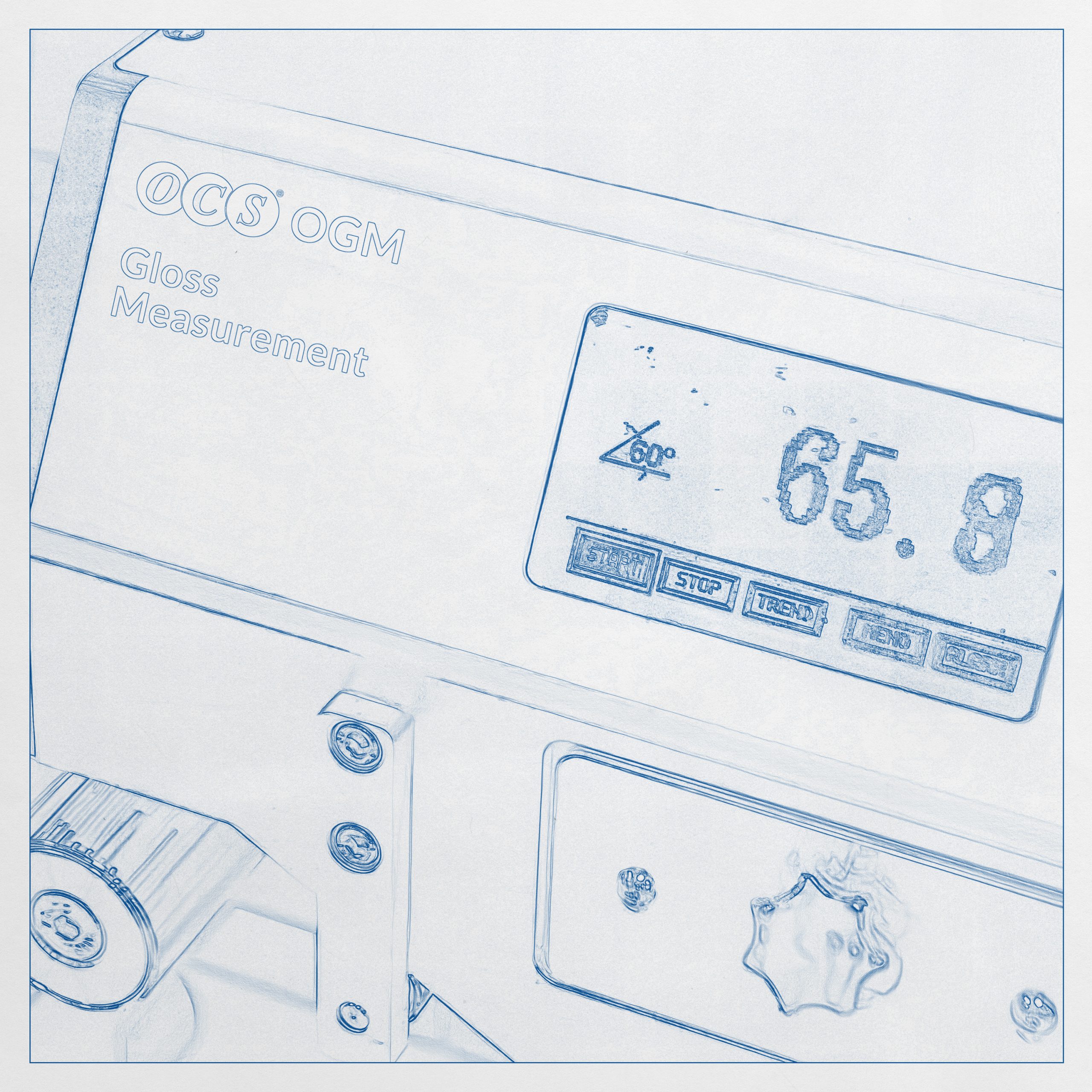

The OCS Gloss Measurement (OGM) is designed for the constant and precise control of film gloss properties. The measuring device is integrated into the Modular Film Analyser (MFA). It enables a continuous measurement of the gloss value on polymer film. The gloss properties of films are analysed based on their different ability to reflect light. A special LED lighting unit illuminates the continuous film while a photo diode measures the strength of the reflected light. The measured amount of gloss, from matt to glossy, is given in GU (Gloss Units).

Measurable Materials

  • Polymer films


  • Robust, precise measuring unit
  • Gloss measurement in GU (Gloss Units), matt to gloss
  • Alarm function when limit value exceeds or falls below a specified range
  • Continuous measurement of the gloss value as well as calibration according to ASTM D523, DIN 67530, DIN EN 14086 and ASTM D2457

Compatible with

  • OCS Cast Film Line
  • OCS Blown Film Line
  • OCS Modular Film Analyser (MFA)

Sales Team

T +49 2302 95622-0
F +49 2302 95622-33


OCS Optical Control Systems GmbH
Wullener Feld 24
58454 Witten

Technical Details

Measuring area
60°: DIN 67530, 45°: DIN EN 14086, 45°: ASTM D2457 (0–150 GU), area 3 cm
Measuring range
0–200 GU
lndicator resolution
0.1 GU
1–50 s
Silicon photo detector with spectral evaluation
Communication protocol
MODBUS (RTU, TCP/IP), PROFIBUS, PROFINET, OPC (Server/Client), CSV file, customer-specific


  • Customer-specific data preparation and transfer
  • Remote control (via communication protocol or digital I/O)
