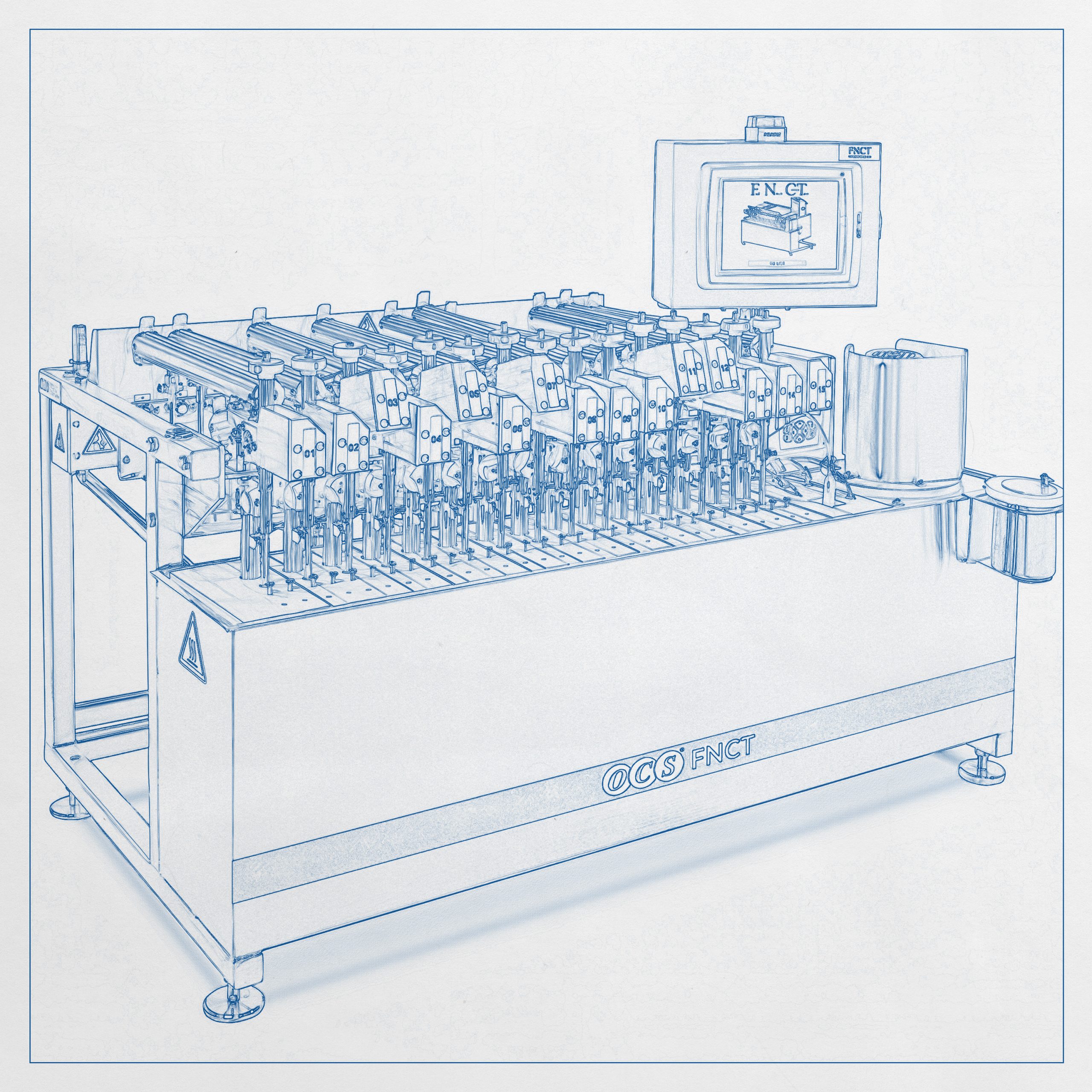

Full Notch Creep Test (FNCT)

The OCS Full Notch Creep Test (FNCT) is a widely used method of classifying polyethylene materials in terms of their slow crack growth behaviour under accelerated conditions. A circumferentially notched body is loaded in a tempered wetting agent with a defined tensile stress, and the time until a break occurs is measured.

Testable Raw Materials

  • Polyethylene materials


  • 15 sample stations with independent tensile stress adjustment and data acquisition
  • Load application through easily adjustable lever weight system
  • Precise adjustment of tensile stress through electronic force sensor
  • Uniform bath temperature control through extensive bath insulation
  • Exhaust air connections for targeted vapour extraction
  • Continuous pH value measurement with adjustable warning and alarm thresholds
  • No time limit on test times, time resolution: 1 second (real time)
  • Operation via touch panel with data trend as well as optical and acoustic alarm functions
  • High chemical resistance of the material used (stainless steel)

Sales Team

T +49 2302 95622-0
F +49 2302 95622-33


OCS Optical Control Systems GmbH
Wullener Feld 24
58454 Witten

Technical Details

Tensile force range (infinitely variable pull arm system with 115–315 N)
2.5–6.5 MPa for samples 10 × 10 × 100 mm with notch depth of 1.6 mm
15–40 MPa for samples 6 × 6 × 90 mm with notch depth of 1.6 mm
Force measurement
Electronic force sensor with a resolution of 0.01 N
Fluid volume
Approx. 55 l
Level control
Stainless steel float sensors and magnetic valves
Inlet pressure range for the supply of demineralised water
0.2–8 bar (3–116 psi)
Communication protocol
MODBUS (RTU, TCP/IP), PROFIBUS, PROFINET, OPC (Server/Client), CSV file, customer-specific


  • Customer-specific data preparation and transfer
  • Remote control (via communication protocol or digital I/O)
