Pellet Scanner (PS800C)

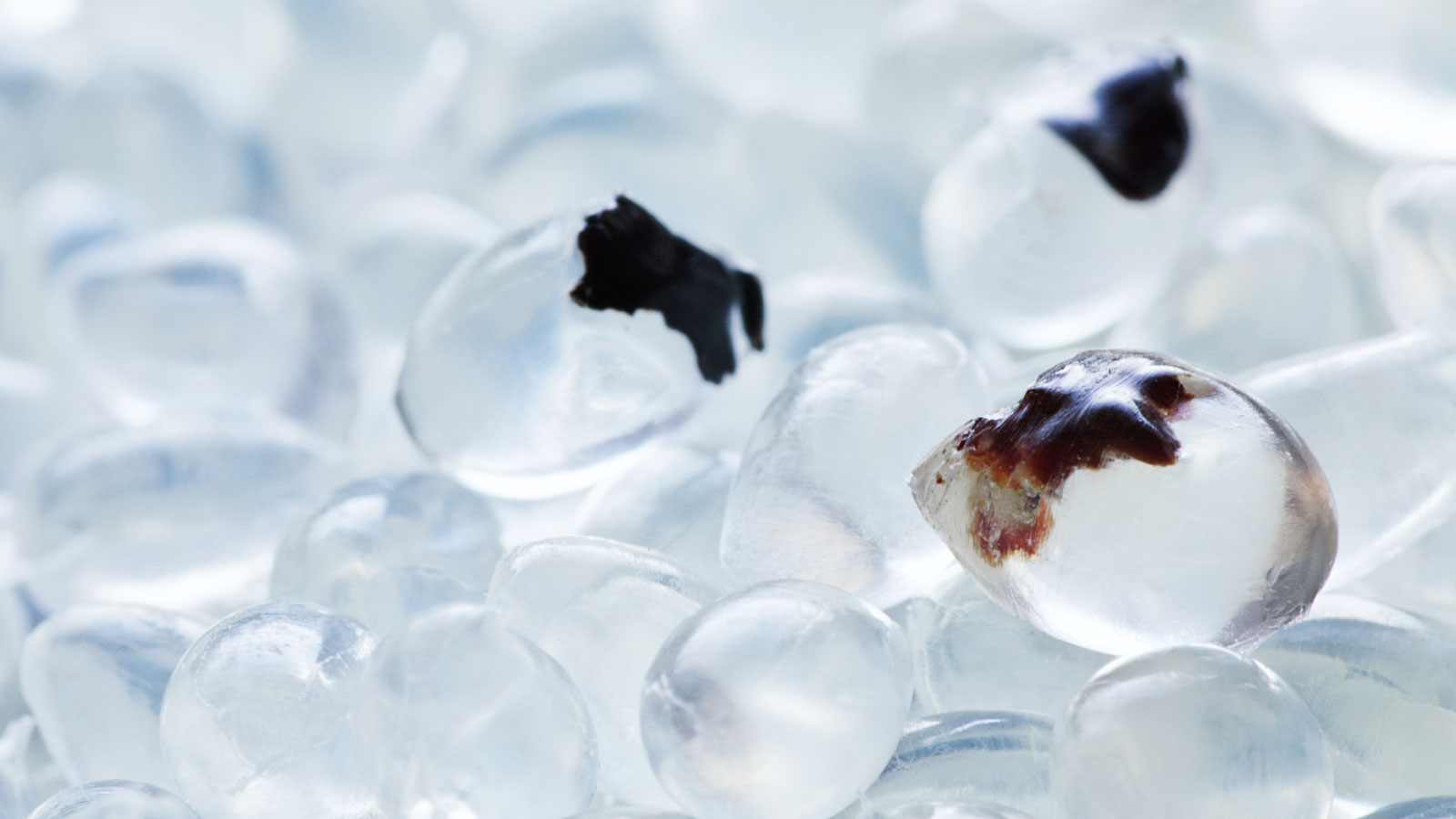

With the OCS Pellet Scanner (PS800C), highly transparent and opaque pellets can be analysed in free fall using two separate colour line scan cameras (inspection of the front and back of the pellet stream). The system detects impurities that show a colour deviation from the product. An additional feature of the PS800C is a multi-track flap system that sorts out the contaminated pellets. The masterbatch concentration can also be determined. Further advantages are the data transfer of real-time results to the production and process control as well as product improvement through the sorting out of contaminated pellets.

Testable Raw Materials

  • Highly transparent pellets
  • Opaque pellets
  • Coloured pellets


  • Two high-performance colour line scan cameras
  • Smallest detectable contamination size: 50 μm
  • High-speed throughput rate of up to 1,000 kg/h depending on pellet properties
  • Specially developed for the detection of impurities in highly transparent pellets
  • Visualisation of the real-time results
  • Multi-track flap system for sorting out contaminated pellets

Sales Team

T +49 2302 95622-0
F +49 2302 95622-33


OCS Optical Control Systems GmbH
Wullener Feld 24
58454 Witten

Technical Details

Two 3CMOS colour line scan cameras
50 μm
High-power LED white light spectrum
Communication protocol
MODBUS (RTU, TCP/IP), PROFIBUS, PROFINET, OPC (Server/Client), CSV file, customer-specific

Additionally available add-on

  • Pellet Transport System (PTS)


  • Customer-specific data preparation and transfer
  • Remote control (via communication protocol or digital I/O)
