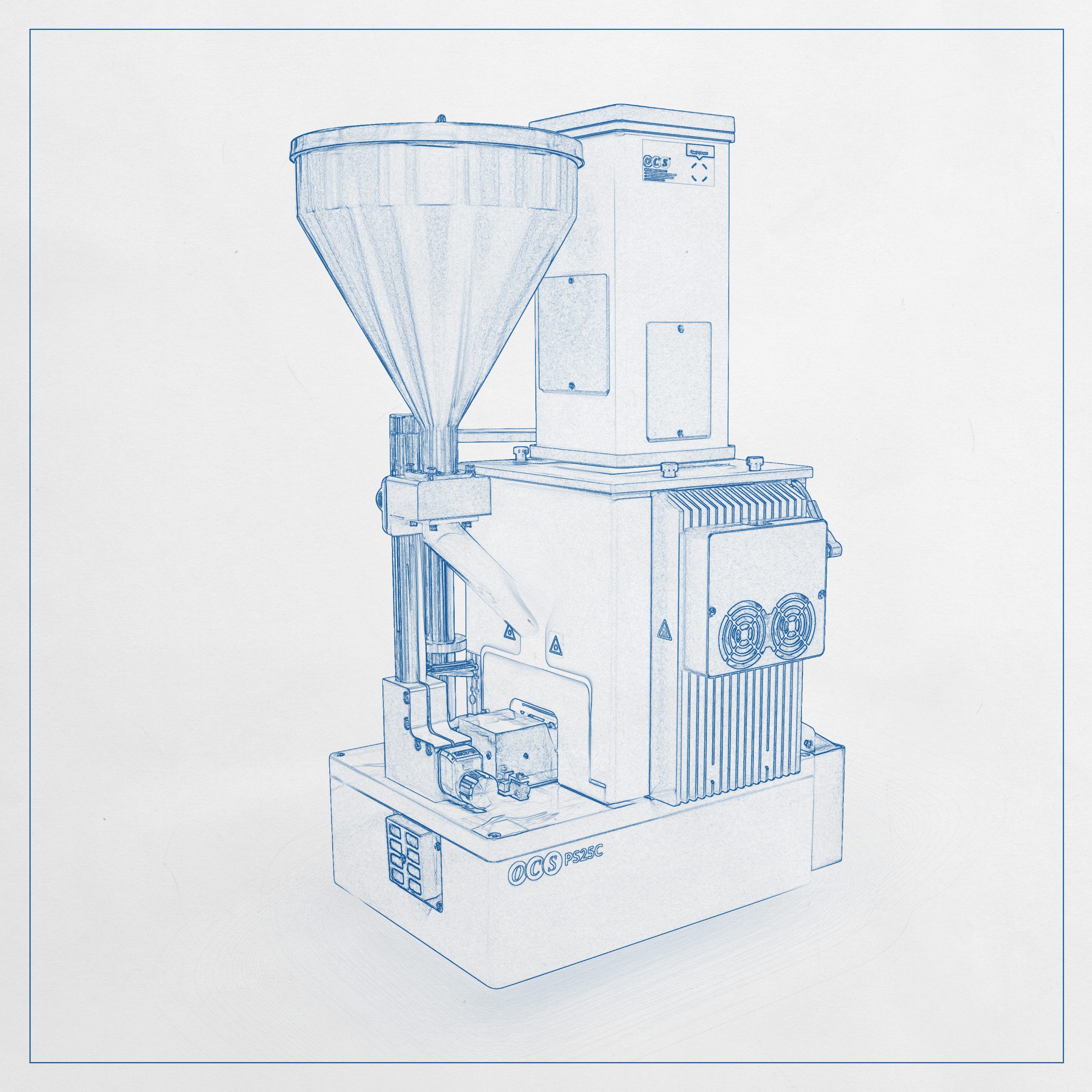

Pellet Scanner (PS25C)

With the OCS Pellet Scanner (PS25C), highly transparent and opaque pellets can be analysed on a vibration plate using colour matrix camera. The system detects impurities that show a colour deviation from the product. An additional feature of the PS25C is a multi-track flap system (optional), which sorts out the contaminated pellets. Further advantages are the data transfer of the real-time results to the production and process control as well as the subsequent evaluation of the sorted-out pellets by further analysis systems.

Testable Raw Materials

  • Highly transparent pellets
  • Opaque pellets

Features

  • High-performance 3CMOS colour matrix camera
  • Smallest detectable contamination size: 10 μm
  • Throughput rate of up to 25 kg/h depending on pellet properties
  • Visualisation of the real-time results
  • Multi-track flap system for sorting out contaminated pellets

Compatible with

  • OCS Colour Measurement (CM3)
  • OCS Pellet Size and Shape Distribution Measurement (PSSD)
  • OCS Pellet Transport System (PTS)

Sales Team

T +49 2302 95622-0
F +49 2302 95622-33
info@ocsgmbh.com
www.ocsgmbh.com

Address

OCS Optical Control Systems GmbH
Wullener Feld 24
58454 Witten
Germany

Technical Details

Camera
3CMOS colour matrix camera
Resolution
10, 20, 30, 40, 50, 60, 100 μm
Lighting
High-power LED with white light spectrum (optional: UV spectrum)
Communication protocol
MODBUS (RTU, TCP/IP), PROFIBUS, PROFINET, OPC (Server/Client), CSV file, customer-specific
X

Additionally available components

  • Multi-Hopper System (MHS)
  • Pellet Throughput Measurement (PTM)
  • Colour Measurement (CM3)
  • Pellet Size and Shape Distribution Measurement (PSSD)
  • Sorting unit for separating contaminated pellets
  • Housing
  • Pellet Transport System (PTS)

Optional

  • Customer-specific data preparation and transfer
  • Remote control (via communication protocol or digital I/O)
